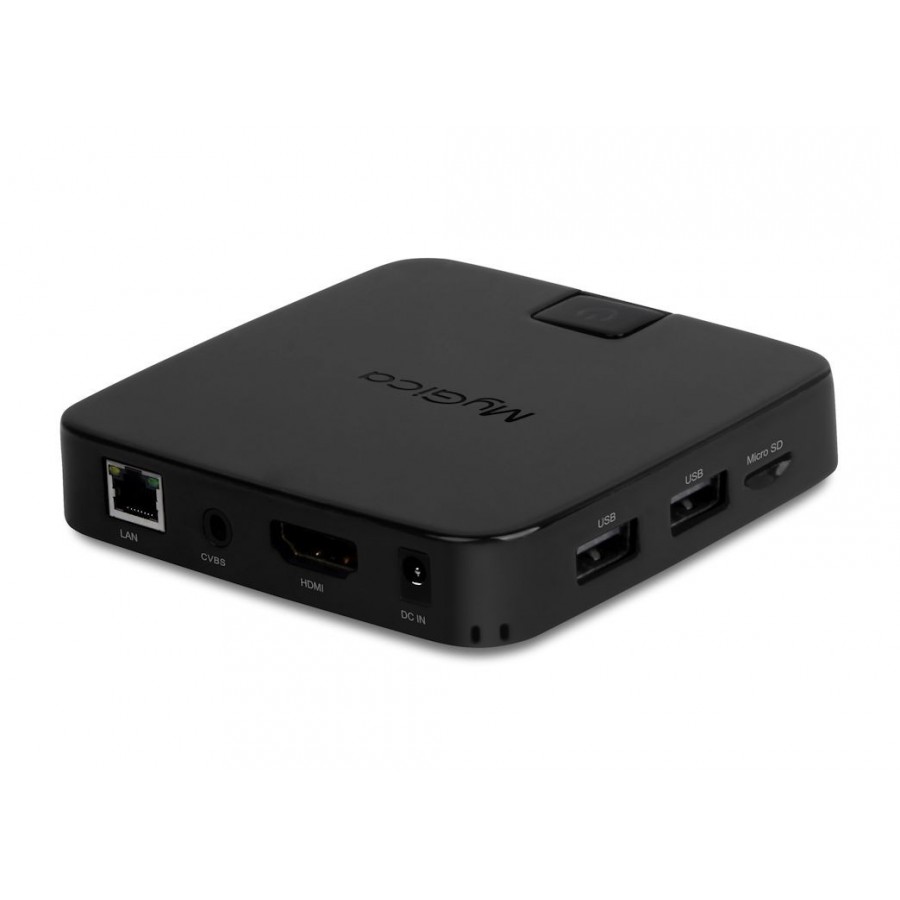

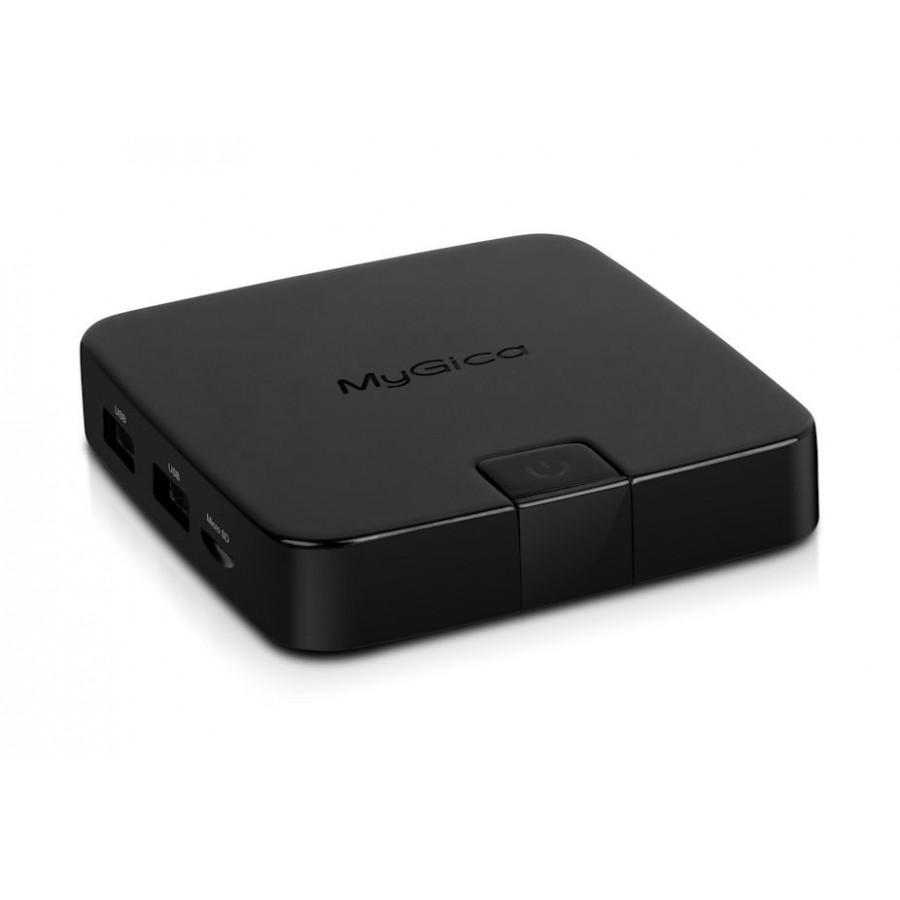

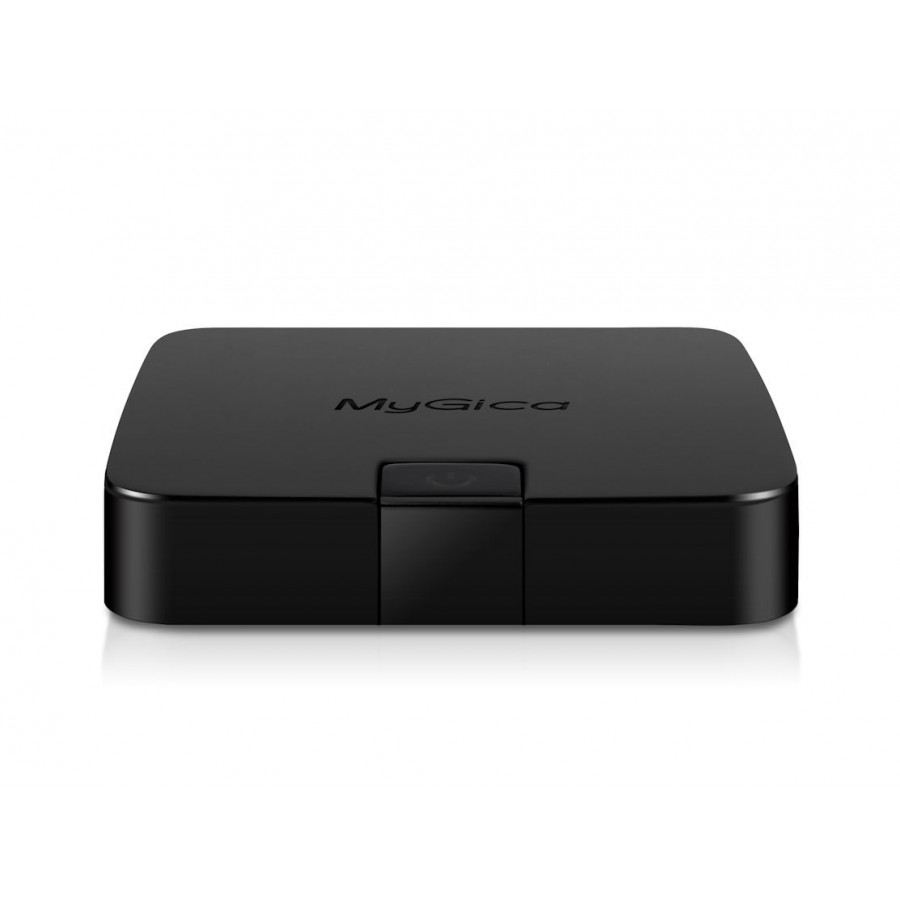

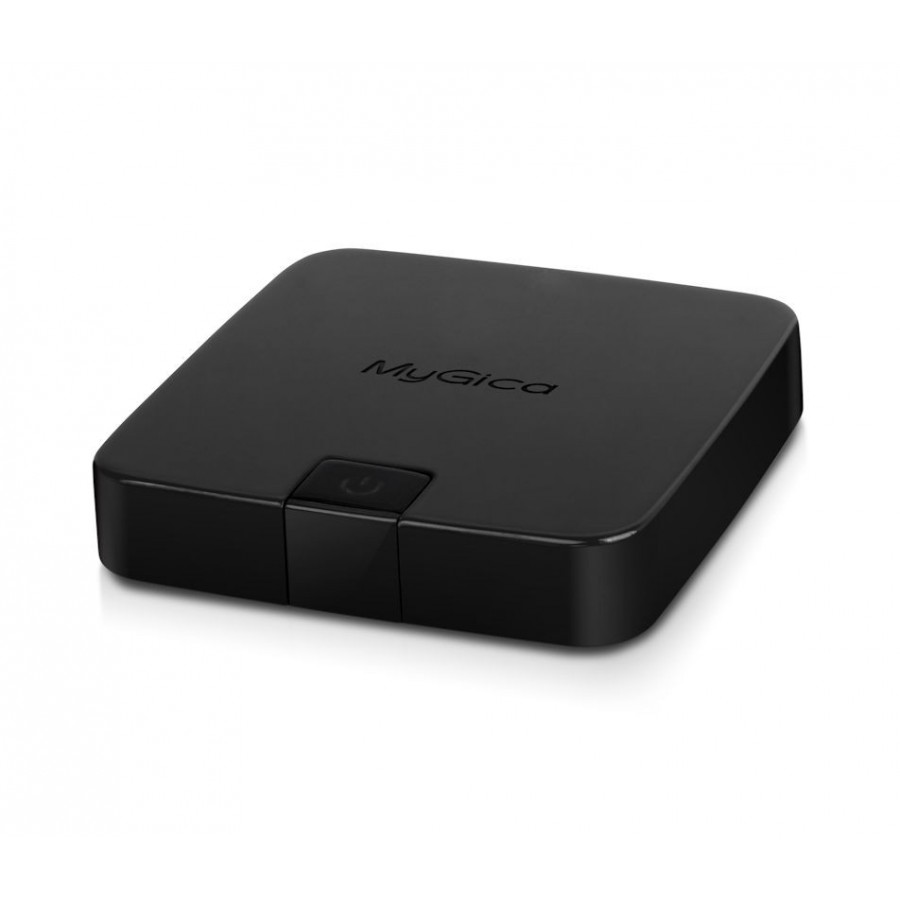

Mygica ATV495

You're just one step to turn your TV into Smart TV

Mygica

ATV495

Don't be fooled by the diminutive size of the ATV 495. With serious upgrades in our small form factor Android box, MyGica succeeds in achieving the next level of excellence. A look inside reveals top of class components that doubles the view-able number of 4K frames per second, the latest advances in ac WiFi technology, 10-bit hardware decoding and more...

Android 5.1

Android 5.1 quad core Android TV box. Youtube TV: With Youtube TV version support which give you 1080P and 4K2K Ultra HD viewing experience on big TV Screen

Android 5.1 Lollipop

Kodi

Kodi, formally known as XBMC, is a media player platform that allows users to play and view most videos, music, such as podcasts from the Internet, home network and all common digital media files from local and network storage media. The ATV 495 comes pre-installed customized and optimized Kodi, with hardware decoding up to 4K2K Ultra HD support.

Kodi mediacenter

WiFi AC + BT

3x Faster Wifi speed than Wireless-N Wi-Fi 150% wide/Ultra-wide coverage for large homes and multi-floor location with Less Interference.

Wifi AC

4K2K/ULTRA HD @60fps

4K2K Ultra HD video playback / real time decoding, with HDMI 2.0 frame rate can go up to 60fps. Enjoy the incredible picture crispness and dramatic detail 4K2K Ultra HD and 1080p resolution.

UHD 4K

H.265 hardware decoding, saving 50% bandwidth

H.265/HEVC is a successor to H.264/AVC. Compare to H.264, H.265 data compression ratio is double at the same level of video quality. It can alternatively be used to provide substantially improved video quality at the same bit rate.

10bit color decoding

10bit color decoding, support maximum 1.7 billion color depth, 60 times more than normal 8bit color decoding. Gives you more natural, more real picture color.

10 BIT SUHD

OTA Update

MyGica Andoid TV Platforms / Solution benefit from MyGica's worldwide secure online update service, to always provide the latest, safest and greatest Firmware and Application that are available.

OTA Update

Features

  • Operating System : Android™ 5.1 Lollipop
  • System Processor : Quad-core 64-bit ARM® Cortex™-A53 up to 2GHz
  • Graphics Processor : Penta-core ARM® Mali™-450
  • Video Resolution : 4K(60fps),2K,1080p(60fps),1080i,720p,720i,576p,576i,486p,486i
  • Video Playback Codec : MPEG 1/2/4,H.265,H.264,VC-1,WMV,AVI,MKV,MOV
  • System Memory : 1 GB DDR3 RAM
  • Internal Media Storage : 8 GB eMMC embedded MultiMediaCard
  • Video Interface : 1 x HDMI 2.0 (HDCP 2.2)
  • Alternate Audio Video Interface : Mini RCA Composite Video & Stereo Audio
  • Bluetooth : Bluetooth 4.0
  • WiFi : 802.11ac 5.0 GHz Dual Band / 802.11b/g/n 2.4GHz
  • Ethernet Interface : RJ45 10/100 Megabits
  • USB Support : 2 x USB 2.0 Ports Max USB HDD Support is 2TB
  • Micro SD Card : 1 Slot Max 128GB
  • Pre Installed Apps : Kodi™ Media Center,Chrome™ Browser,Netflix,Facebook YouTube and More

System Requirement

  • TV with HDMI in.
  • For WiFi, Router with preferrably N support.

Package Contents

  • ATV495
  • HDMI cable
  • AV Cable
  • User Manual
  • Power Adapter
  • KR41 Remote Control

Specification

System
CPUAmlogic S905, ARM Cortex A53 x4 64Bit, Mali450 GPUx5
CPU Frequencyup to 2.0GHz
RAM1GB
Storage8GB EMMC
OSAndroid 5.1
DRMPlayReady Verimatrix WIDEVINE NAGRA
Interface Defintion and parameter
OutputHDMI, CVBS
USB2x USB 2.0
SD cardSD card up to 128GB
Internet802.11ac Dual band WiFi & RJ45 100M ethernet

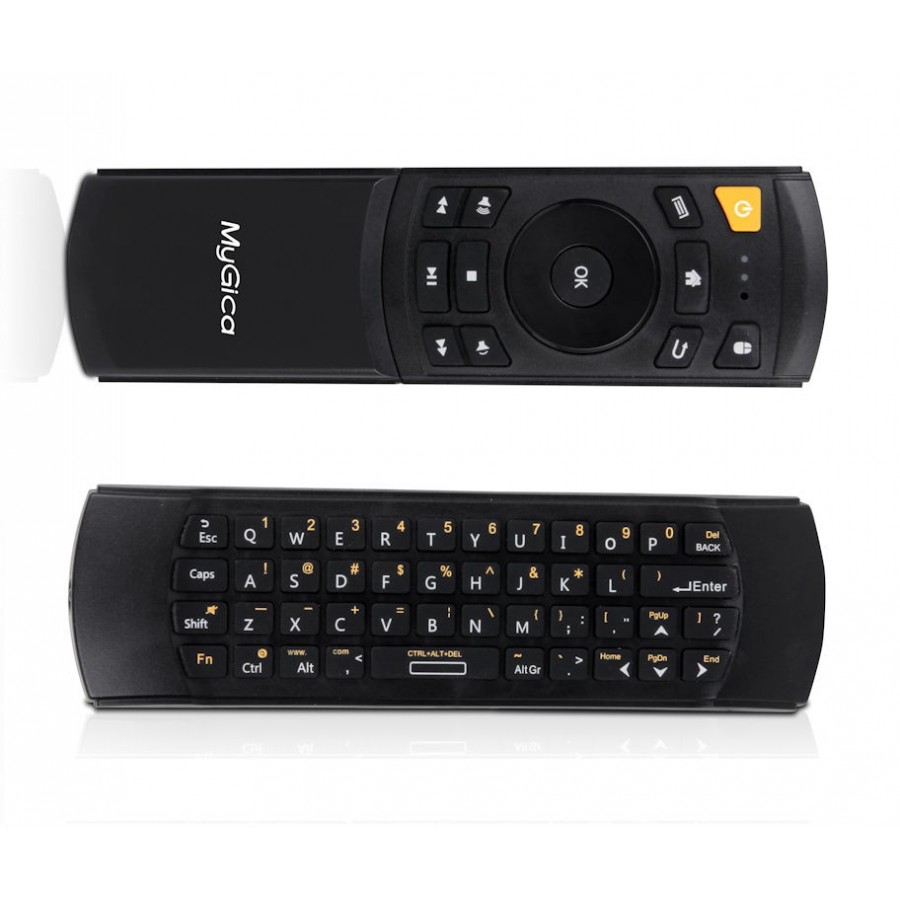

Remote controlMyGica KR41 airmouse with keyboard controller
Voltage5V/2A DC
Main Function
UIMyGica Android 5.1 system UI Sytle
BrowserGoogle Chrome
Media PlayerLocal video playback:H.265, Mpeg1/2/4,H.264,VC-1,WMV,AVI,MKV,MOV
Online VideoAccess to internet,online video playing
MusicLocal music player: MP3 WAV,WMA
Online MusicAccess to internet,online music playing
Picture viewerSupport multi formats: BMP,JPG,TIF,PNG,GIF
Software updateSupport SD card/USB disk local update, Online udpate
External storageSD card, USB storage support
Dimension
Resolution4K2K.1080P.1080i.720P.720i.576P.576i.480P.480i
Weight159g
Power Consumption< 6W
Remote Distance8~10Meters Visual
Product Size82x82x19mm
Height33mm
Anchura160mm
Profundidad110mm
Peso237g
CPU (Processor)Amlogic S905 Quad Core Cortex-A53 at 2.0GHz
GPU (Graphics)Penta Core 5x Mali 450MP at 2GHz
RAM memory1GB DDR3
Internal memory8GB expandable by SD
Operating systemAndroid 5.1 Lollipop
Wi-Fib/g/n/ac Dual 5Ghz
Ethernet10/100 Mbps
USB ports4
BluetoothInternal 4.0
WiFi HotspotYes
H.265 Hardware decodingYes
Video outputHDMI, RCA AV
Card readerMicroSD
TV TunerMyGica T230 USB DVB-T2 (Optional)
Remote controlKR41 Qwerty
Video ResolutionUltraHD 4K 3840p
Supports WebCamYes
